Serving a multitude of industrial engineering sectors, as well as the global horticulture, shipbuilding, water treatment and automotive markets, Johnson Pump has always put customer needs first. Supplying an expansive portfolio of pumps (based on positive displacement and centrifugal mechanisms), plus all the necessary accessories. The Johnson Pump portfolio covers internal gear pumps, impeller pumps and circulation pumps. All of these items deliver strong performance and continued reliability. The Johnson Pump engineering team designs low noise operating equipment, and engineered coatings to protect against debris damage

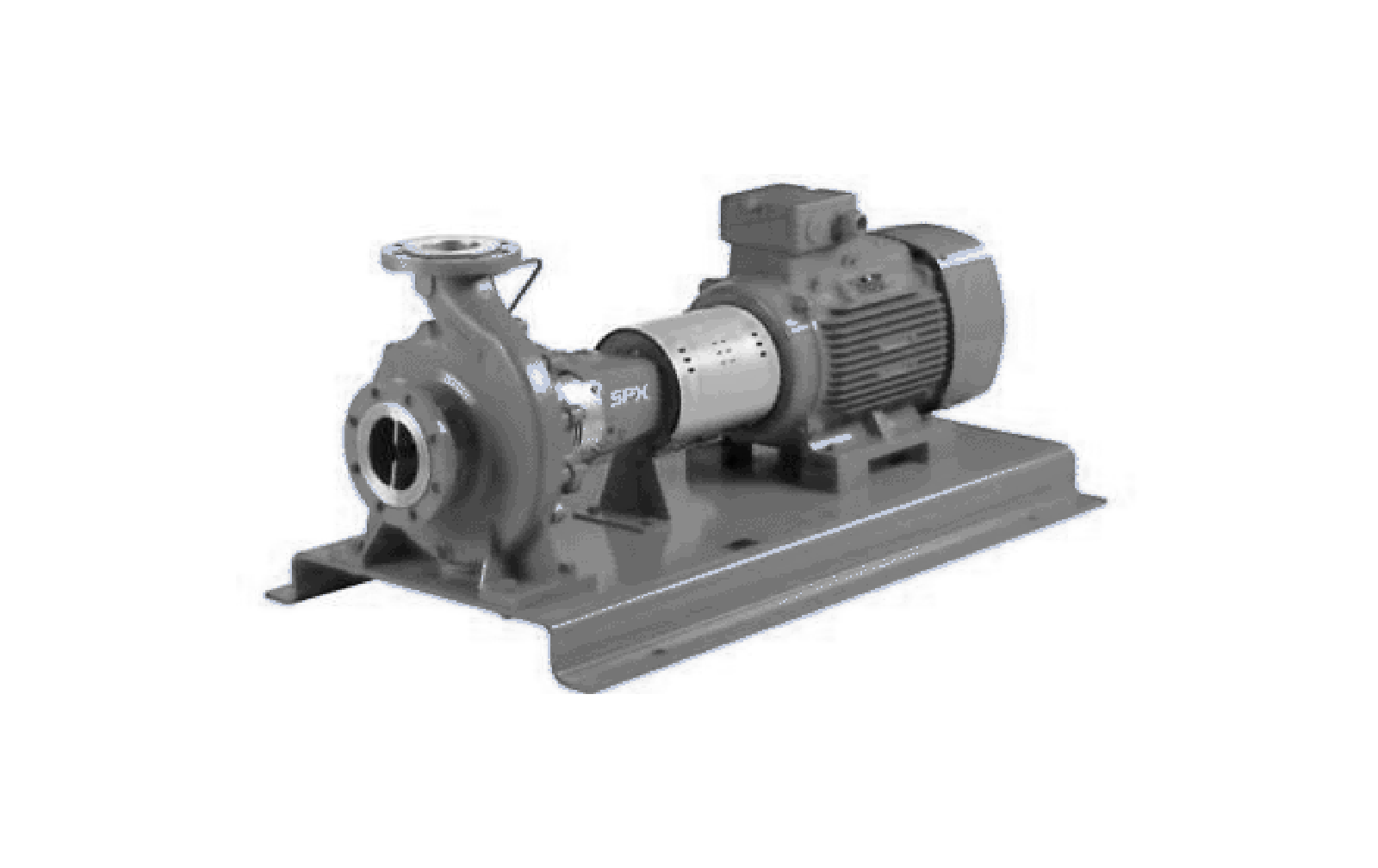

The KGE is a self-priming centrifugal pump with radial (semi-open or closed) impeller, overhung mounted on a bearing pedestal. If a spacer type coupling is used, the pump can easily be dismantled without the necessity of disturbing the pipings or moving the motor. The KGE series is available in different drive possibilities: KGE: pump with bare shaft for clockwise rotation KGEL: pump with bare shaft for counter-clockwise rotation KGEF: pump with flanged motor (close coupled) Suitable for Clean and polluted liquids that are non-corrosive to cast iron, including water, oils, petrol and all kind of chemicals. Draining building excavations, emptying ponds, ditches and swimming pools, water extraction for irrigation and watering, aboard ships as bilge, deck wash and general service pumps. Emptying pits and throughs containing wastewater, handling fuels, condensate extraction pumps.
A centrifugal pump is a mechanical device designed to move a fluid by means of the transfer of rotational energy from one or more driven rotors, called impellers. Fluid enters the rapidly rotating impeller along its axis and is cast out by centrifugal force along its circumference through the impeller's vane tips.
rief introduction of CM/ CHM series barrel type stainless steel multistage centrifugal pump CHL series barrel type stainless steel multi-stage centrifugal pump with horizontal lengthened shaft motor, axial suction, radial discharge. The flow parts of the pump are all stainless steel stamping forming. Products have a wide range of adaptation, high efficiency and energy saving. Application Scope of CM/CMH series barrel type stainless steel multistage centrifugal pump
Sp. Gravity : Water Temperature : Ambient Discharge Capacity : 2-20 m3/hr Total dynamic head : 12-8 meter. Pump speed : 2900 rpm Recommended Motor : 0.75-3 KW Suction nozzle size : 40 mm Discharge nozzle size : 40 mm Casing working pressure : 10 kg / cm2 Pump MOC : SS-304 Pump Impeller : SS-316 Standardization : ISO 9001
